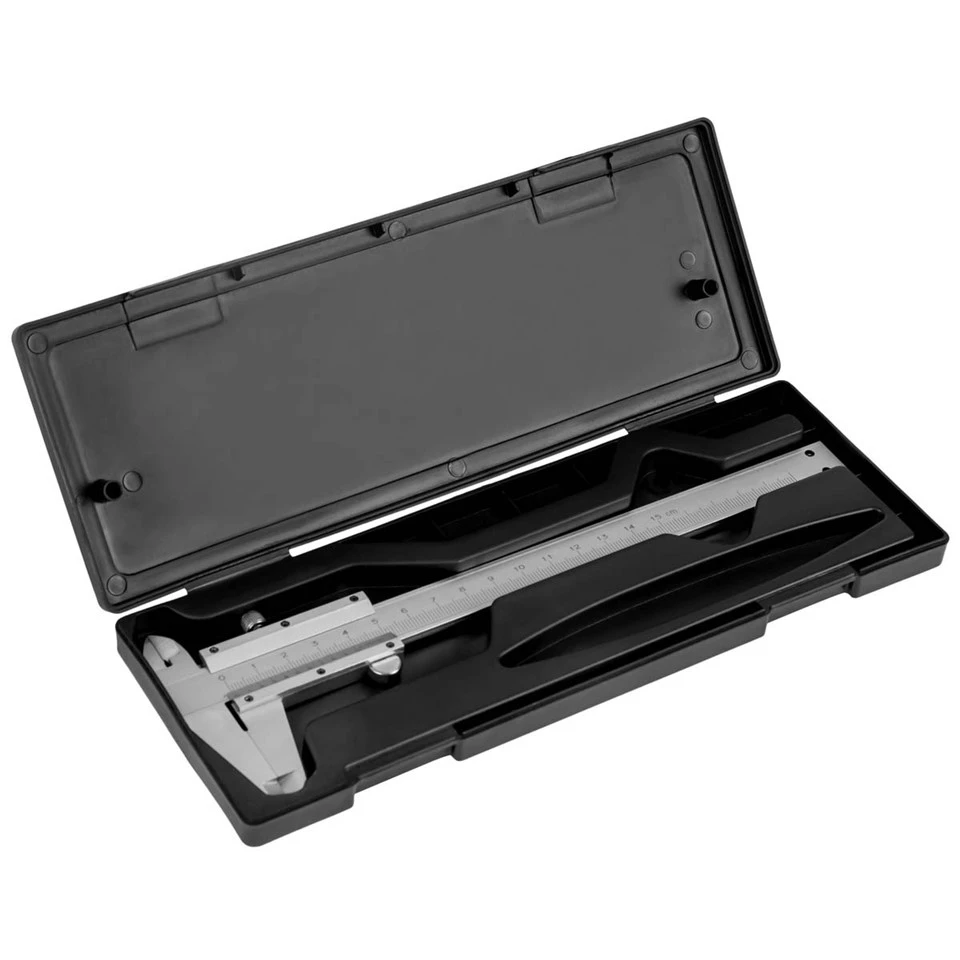

Vernier Caliper 0-150mm
● Product name:vernier caliper 0-150mm
● Serial number: 201-07
● Outside/inside/step/depth measurements
● Locking screw type(open type)
● Resolution: 0.02,0.05mm,0.02MM/1/1000",0.05MM/1/128"
- Product Introduction
Specification
|
ART. NO. |
ART. NO. |
RANGE |
READING |
|
201-07-0151 |
201-07-0151C |
150MM |
0.02MM |
|
201-07-0152 |
201-07-0152C |
150MM |
0.05MM |
|
201-07-0153 |
201-07-0153C |
150MM/6" |
0.02MM/1/1000" |
|
201-07-0154 |
201-07-0154C |
150MM/6" |
0.05MM/1/128" |
|
201-07-0201 |
201-07-0201C |
200MM |
0.02MM |
|
201-07-0202 |
201-07-0202C |
200MM |
0.05MM |
|
201-07-0203 |
201-07-0203C |
200MM/8" |
0.02MM/1/1000" |
|
201-07-0204 |
201-07-0204C |
200MM/8" |
0.05MM/1/128" |
|
201-07-0301 |
201-07-0301C |
300MM |
0.02MM |
|
201-07-0302 |
201-07-0302C |
300MM |
0.05MM |
|
201-07-0303 |
201-07-0303C |
300MM/12" |
0.02MM/1/1000" |
|
201-07-0304 |
201-07-0304C |
300MM/12" |
0.05MM/1/128" |
|
Note：201-07-0151=Stainless steel, 201-07-0151C=Carbon steel |
|||
Other details
Feature
Hot sale vernier caliper 0-150mm with locking screw, (we also have monoblock) this type is the most regular and classic one in our daily life, very easy to operate it.We can supply both stainless steel and carbon steel, if you need the caliper for professional measurement, we suggest you can choose the stainless steel, because the hardened is higher than the carbon steel, it has better corrosion resistance.
The vernier caliper 0-150mm with removable vernier blade enables it can be easily replaced and repaired when it being worn out due to long-term use. Don't need to change a new caliper, and it can reducing the usage cost. To some extent, this structure also facilitates the cleaning of the caliper, because the vernier blade can be removed for a thorough cleaning to avoid the accumulation of dirt that may affect the measurement accuracy.
The disadvantage of vernier caliper 0-150mm is the accuracy may be impacted after replacement if the installation process is not precise enough or the screws become loose due to improper use. Of course, as long as the installation, calibration and use in proper way, It can also maintain a relatively high accuracy.
Easy to use & accurate measurement- 4 way measuring caliper tools：internal, external, depth and step measurements.
FAQ
Calibration: It is essential to ensure that the caliper is calibrated correctly. For high - precision measurement work, it is recommended to use a standard calibration block to check the accuracy of the caliper.
Zero - setting: Close the jaws of the caliper completely. For vernier calipers, make sure that the zero - mark on the vernier scale aligns exactly with the zero - mark on the main scale.
Cleaning: Check whether the caliper is clean. Any dirt, debris, or metal shavings on the jaws or the scale can affect the measurement accuracy.
Inspection: Inspect the condition of the caliper's jaws. Ensure that the jaws are smooth and free from burrs or damage.
1. Mechanical Engineering : In mechanical manufacturing, vernier calipers are used to measure the dimensions of various mechanical parts such as shafts, gears, bolts, and nuts. For example, when machining a shaft, the outer diameter of the shaft needs to be measured precisely during the machining process to ensure that it meets the design requirements.
2. Automotive Industry: In the automotive manufacturing and maintenance process, vernier calipers are used to measure various components. For example, when assembling an engine, the dimensions of pistons, connecting rods, and cylinder bores need to be measured.
3. Metalworking : In sheet metal fabrication, vernier calipers are used to measure the thickness of metal sheets, the width and length of cut - out parts, and the diameter of holes or rivets.
4. Woodworking: In woodworking, vernier calipers can be used to measure the thickness, width, and length of wooden boards. For example, when making furniture, precise measurement of the wood components is necessary to ensure a proper fit.
5. Educational: In educational institutions, vernier calipers are used as teaching tools in physics, engineering, and technical courses.
